TKS-120 SKID

HEAVY DUTY
DUST SUPPRESSION SYSTEM

TKS-120 skid Ideal for large outdoor areas, fully automatic, used for the most demanding applications, large mines and large demolition areas. Usefull also for sterilization and sanitation.

DOWNLOAD DATASHEET





100%
electric powered

108 KW ELECTRIC ENGINE
POWER

COVERAGE

110-120 m

nebulized water

0° / 35°

electric tilting

Key Features of TKS120 SKID DUST SUPPRESSION SYSTEM

O°-340 AUTOMATIC OSCILLATION

The unit features automatic oscillation with a manually adjustable working angle. This allows users to easily set the coverage range.

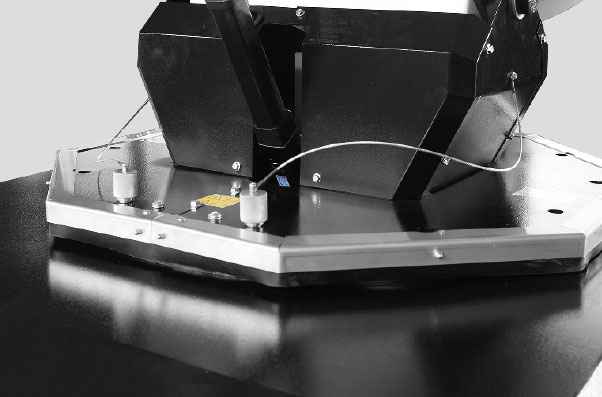

easy handling & transportability

The unit is equipped with galvanized SKID base with forklift pockets. With the central lifting eye they make the uniti easy to put in operation.

SAFETY CLUTCH

The unit is equipped with safety automatic clutch compliant with HSE norm. Rotation automatically stops if there are obstacles.

HIGH POWER NEBULIZATION

The unit delivers high nebulization power, ensuring optimal coverage and dust suppression. Stainless steel crown with 72 nozzles ensure powerful performances.

HOW DOES A DUST SUPPRESSION SYSTEM WORK?

R.O.T. System

REMOTE CONTROL, OSCILLATION, TILTING

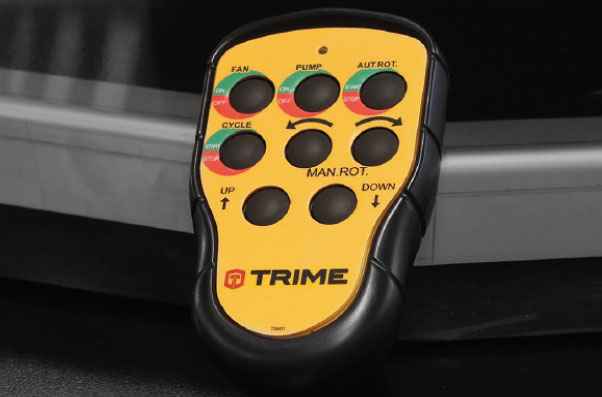

Remote Control 50mt range

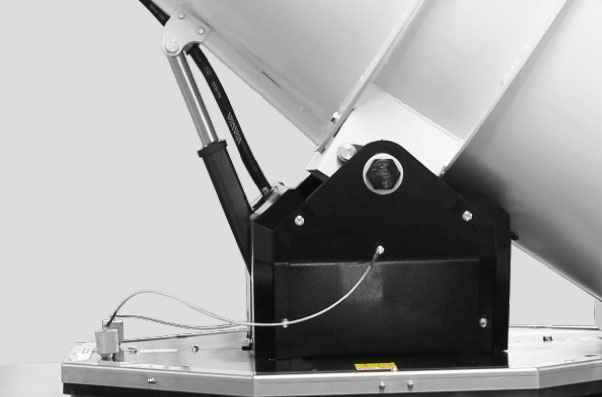

Electric Tilting System
Automatic Oscillation 340°

TKS120 SKID DUST SUPPRESSION SYSTEM Technical Features

  • SMART START SYSTEM
  • Emergency stop button
  • Separate electric cabinet
  • Water pump 4kW
  • 2 Self priming pump for external connection tank 0,05 kW (each)
  • Water pressure Gauge
  • Water Safety pressure switch
  • Lifting eye
  • Stainless steel crowns with 72 nozzles
  • Automatic Water drain system
  • Mounted on base with forklift pockets

Safety features

  • Reduce dust for healty and safe enviroment
  • Safety automatic clutch compliant
    with HSE norm
  • Remote control with full operation
    - start/stop
    - tilt up/down
    - turn left/right/auto

Options

  • 60Hz version / 380/480V
  • Inlet plug 32A-110V 50Hz
  • Road Tow trailer
Technical data read more

Data
Electric engine power (kW) 108
Water consumption (l/m) 145 -160
Coverage (without wind) (m) 110 - 120
Max. water throw height (m) 40
Water connection UNI 45 or STORZ or CAMLOCK
Min. inlet Water pressure (bar) 1,0
Water inlet filter (Mesh) 60
Y Filter (µm) 500
Electric tilting system 0 - 35°
Automatic oscillation 0 - 340°
Dimensions (mm) 2480x2180x2470
Weight (kg) 2990
