ANTIGLARE lighting tower

X-ECO ANTIGLARE

6x150 48V LED 8,5M MAST HEIGHT

The Trime X-ECO is the leading lighting tower within the construction rental markets and is widely accepted as the industry standard. The X-ECO antiglare comes equipped with 150w anti-glare lights ideal for lighting areas where glare can be an issue.

DOWNLOAD DATASHEET

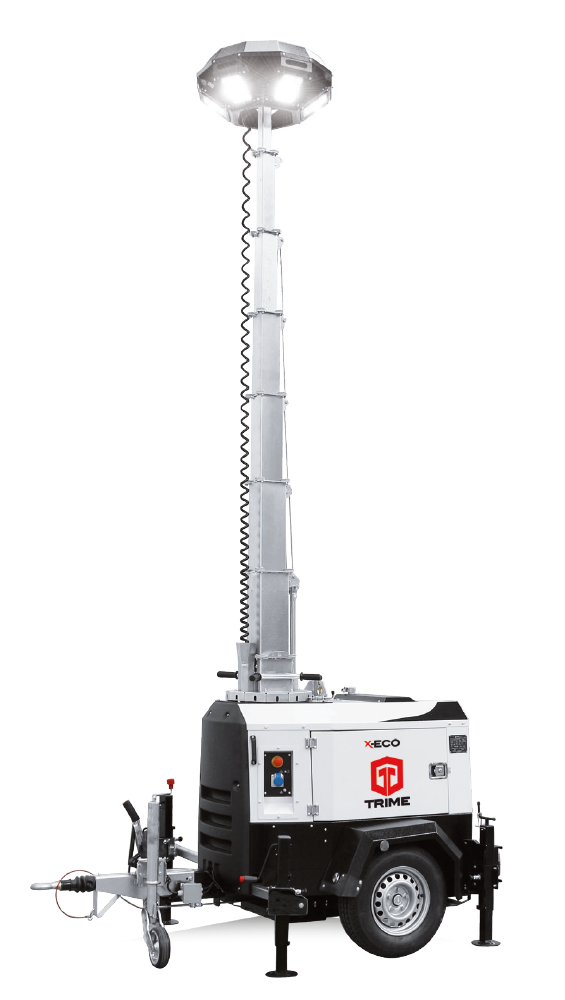

the Trime X-Eco antiglare, a mobile full engine lighting tower with high efficient antiglare lamp for urban worksite





ANTIGLARE
TECHNOLOGY
for urban work site

full engine power

illuminated area

6600 sqm

LED TECHNOLOGY
disclaimer tells 14 is the number of x-eco transportable per truck

Key Features of Trime X-ECO ANTIGLARE Lighting Towers

STRONG POWER SUPPLY

Equipped with a consistent and independent power source, these lighting towers ensure continuous illumination even in remote areas without access to the electrical grid.

ANTIGLARE

Trime's antiglare LED technology provides sustainable lighting, while offering brighter, longer-lasting and high-performance illumination where glare can be an issue.

STRONG AND RELIABLE

Designed to withstand harsh environmental conditions, built with robust materials and features that ensure HIGH performances in tough environments.

High Mobility and Flexibility

These Lighting Towers can be easily transported and deployed in various locations, making them ideal for construction sites, outdoor events, and emergency response situations.

X-ECO ANTIGLARE Technical Features

  • Multi-directionally adjustable and tiltable floodlights
  • 6x150W, 48V LED lights
  • 48V power between the generator and the lights
  • 7 sections hydraulic vertical tower 8,5 m, 340° rotatable
  • Galvanized metalworks 80 μm powder coating
  • Very compact dimensions, up to 14 units per truck
  • Central lifting eye, longitudinal and transversal forklift pockets for effective handling
  • Plug & play, colour coded cables and connectors
  • IP67 level protection certified
  • Guided main coiled cable to avoid damage during tower operation
  • Digital control panel and fuel level indicator
  • Circuit breaker for electrical protection against overload
  • External emergency stop button
  • Fully bunded tank, 110%
  • Certified wind stability up to 110 km/h
  • 4 height adjustable stabilizers
  • On board levels for guidance during stabilization
  • Amoss safety break
Technical data read more

Dimensions & Weight
Dimensions min (mm) 2540x1390x2515 (LxWxH)
Dimensions max (mm) 2540x1550x8500 (LxWxH)
Total weight (Kg) 920
Floodlights
Type Led
Power (each) 150W
Floodlights number 6
Illuminated area (sqm) 6600
Mast
Lifting method Hydraulic
Max height 8,5 m
Rotation 340°
Max wind speed 110 Km/h
Alternator
Model Synchronous
Frequency (Hz) 50
Insulation class H
Degree of protection IP 23
Single phase voltage 3,5kVA - 230V
Auxiliary outlets 1,2 kVA
Engine
Model Kubota Z482*
Fuel Diesel
r.p.m. 1500
Tank capacity (l) 110
Consumption (l/h) 0,55
Running time 200 h
Noise level dB(A) at 7m 65
* May vary based on stock availability. However, Yanmar primary equivalent brand eventually will be used
